Graco Sanitary Fluid Handling Systems and Components

Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in food processing, automotive, construction and industrial applications.

Graco’s ongoing investment in fluid management and control continues to provide innovative solutions to a diverse global market. The company has its corporate headquarters in Minneapolis, Minnesota, and employs approximately 2,200 people worldwide.

Graco’s European headquarters are based in Maasmechelen, Eastern Belgium. Main activities include assembly, distribution, customer service, technical assistance, sales and marketing. GRACO employs about 220 people in Europe. We work with many distributors and service partners throughout Europe to guarantee customer satisfaction.

Sanitary fluid handling equipment

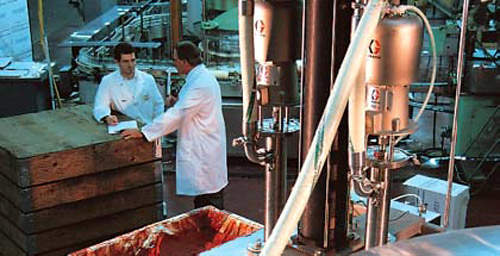

Graco sanitary equipment is ideal for a wide range of applications: tote, drum and pail evacuation, batching ingredients into processing kettles, vats and mixers, package filling and food product assembly spraying. We have solutions for processes that handle ingredients up to a viscosity of 1,000,000cps.

This equipment is designed for applications in the food, pharmaceutical and cosmetic industries where we can offer the best solution for your pumping needs.

Senator sanitary priming piston pumps and packages

The Senator sanitary priming piston pumps and packages are ideal for high volume applications with ingredients under 100,000cps.

The Senator 4:1 sanitary pump is constructed of 316 stainless steel, with a 2in (50.8mm) sanitary tube flange outlet, and can be fitted into open-head drums or directly inserted into a 4.5in (114mm) closed-head drum bung. It is an on-demand pump; by closing the outlet or dispense valve, the pump will stop until flow is again required.

This USDA-approved pump can be taken apart in less than five minutes for those applications that require daily sanitation, and can empty a drum in less than three minutes when pumping somewhat flowable to moderately flowable fluids.

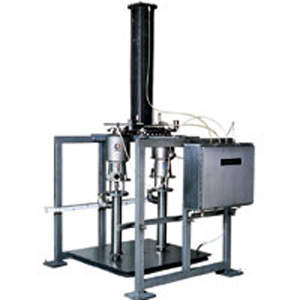

BES300 bin evacuate system

The BES300 bin evacuate system is specially designed for evacuating bags in the bin containers.

The BES 300 is designed to unload viscous food ingredients from 300gal (1,135.6l) ‘bag-in-the-bin’ containers. Eliminate the problems of bin dumping and manual scooping with the BES 300.

Husky sanitary flapper pump

The 3150 sanitary flapper pump is designed for materials and fluid streams containing large solids or chunks, which clog a ball-designed pump or are damaged by the pumping action. It easily moves larger solids and will pass up to 2.5in (63.5mm) solid without crushing or damaging the product.

Husky sanitary ball pump

The 3150 sanitary ball pump is designed for applications that benefit from the convenience of quick knock down design, but may not require leak detection. It passes solids up to 1in (25mm) in diameter. The ease of disassembly of the fluid ends, large porting, and high flow capacity, make the 3150 sanitary ball pump perfect for your high volume application needs.

High sanitation diaphragm pump

The Graco 3150 3A sanitary pump is designed to meet the stringent sanitation requirements of the milk and dairy industry. It has the highest flow capacity of any air-operated double diaphragm pump certified by 3A.

Mounted on a floor stand and equipped with a leak detector, the 3150 3A can be rotated 185° to drain any excess sanitation chemicals used in the clean-in-place (CIP)process.

Sanitary pumps and packages

Graco’s Monark 5:1 double ball pump is suitable for fluids up to 50,000cps when immersed directly, and up to 100,000cps when mounted on a two-post ram. These fluids tend to flow to the pump inlet and are self-leveling. Once pressurized, they flow easily with minimum pressure drop.

The USDA and 3A-approved, quick knockdown pump is constructed of 316 stainless steel, with a 1½in (38mm) sanitary tube flange outlet.

Typical fluids handled include:

• Fruit juice
• Mayonnaise
• Pizza sauce
• Corn syrup
• Jams

Quality

Graco is a renowned quality brand name with 80 years of experience and is certified to ISO 9001 in North America and in Europe. We warrant all Graco products to be free from defect for a minimum period of one year.
